Your position: Home > HVAC > V Bank filter

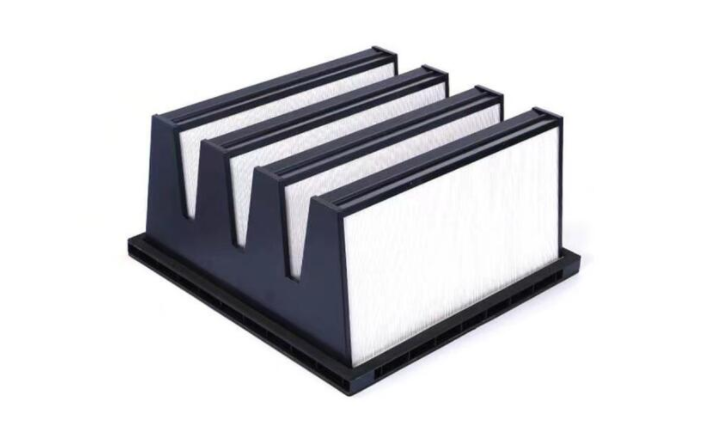

V Bank filter

V-bank air filters serve as a critical intermediate or terminal filtration stage in commercial HVAC and ventilation systems. Designed for high-performance air handling units (AHUs), they efficiently capture fine particulate matter ≥0.5 microns, with filtration efficiency ranging from 65% to 95% across standardized grades.

Efficiency: These filters typically offer high efficiency, often 99.97% to 99.99% at 0.3 microns (H13/H14 grades).

Dimensions: customization

Flow Rate: Airflow capabilities can range from approximately 735 CFM to over 2000 CFM, depending on the size and design.

Media: The filter media is typically made of micro glass fibers.

Frame Material: As seen in the image, a common frame material is ABS plastic, known for being light and durable. Other options include galvanized steel or aluminum.

Send Email

Chat Now

Share With:

Introduction

Specifications

Application

Feature

Related Products

Introduction

V Bank filter Introduction

The V-Bank Filter is a high-capacity, high-efficiency air filtration technology widely used in commercial, industrial, and institutional HVAC systems. Its distinctive “V-shaped” cartridge arrangement dramatically increases filtration surface area while maintaining low resistance to airflow. As a result, V-Bank Filters deliver superior particulate capture, longer service life, and optimized airflow performance.

Specifications

V Bank filter Specifications

Dimensions: customized

Efficiency: Efficiency ratings range from MERV 14 and MERV 15 to HEPA grades H10, H13, or H14, with efficiencies often reaching 99.99% for 0.3-micron particles.

Flow Rate (CFM): Airflow capabilities can range from around 735 CFM to over 2000 CFM, depending on the size and design.

Frame Material: Frames are commonly made from ABS plastic for lighter, incinerable options, or galvanized steel for more demanding applications.

Media: The filter media is typically made from continuous length superior quality micro glass fiber paper.

Pressure Drop: The V-bank design offers a high surface area to provide a low initial pressure drop, which helps in energy savings and longer operational life.

Application

V Bank filter Application

Healthcare Facilities: Hospitals, laboratories, and clinics use V-bank filters to ensure a sterile environment, protecting patients and healthcare workers from airborne contaminants. Industrial and Manufacturing Plants: To remove dust and pollutants from the air, protecting machinery and product quality. Data Centers: Protects sensitive electronic equipment from dust and particulate contamination, ensuring reliable operation. Commercial Buildings: Offices, shopping malls, and other commercial venues where maintaining high indoor air quality is essential for occupant health and comfort. Also be used in applications of pharmaceuticals, food, cleanroom, etc.

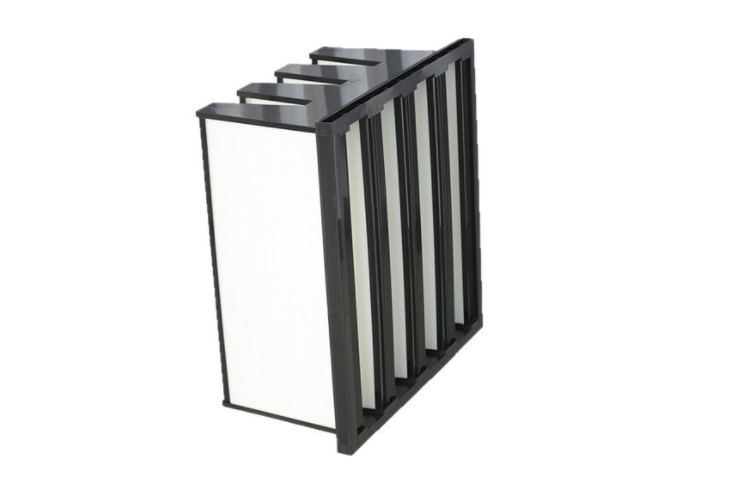

740 (3)

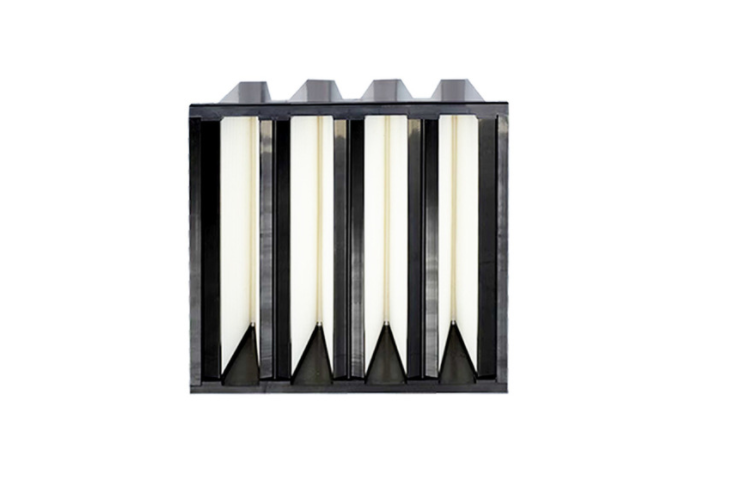

740 (2)

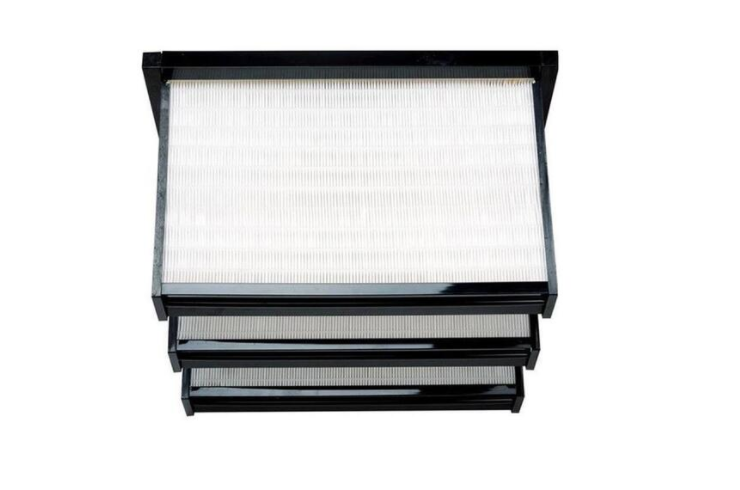

740 (1)

Feature

V Bank filter Feature

High Efficiency Filtration:

These filters typically capture a minimum of 99.99% of airborne particles as small as 0.3 microns, including dust, pollen, and other fine particulates.

V-Bank Design:

The distinctive "V" shape of the pleated media dramatically increases the filter's surface area and dust-holding capacity, which extends service life and reduces maintenance frequency.

Durable and Lightweight Construction:

The filter features a lightweight, high-strength plastic frame (often ABS) that is incinerable, eliminating the risk of corrosion associated with metal frames.
