Oil filter LF3376

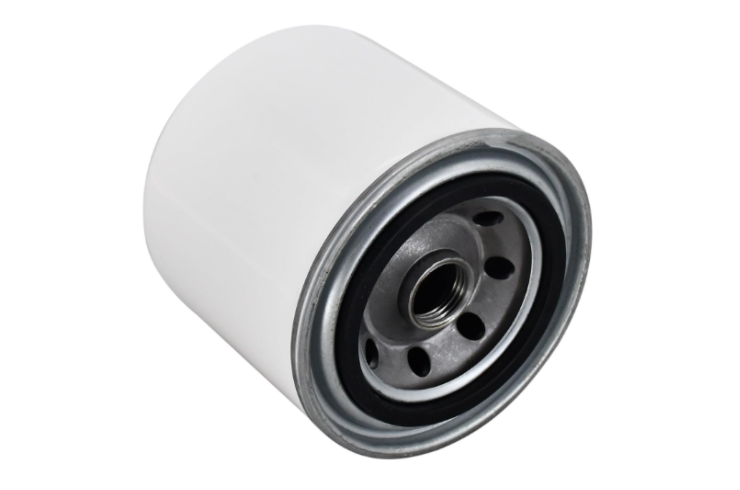

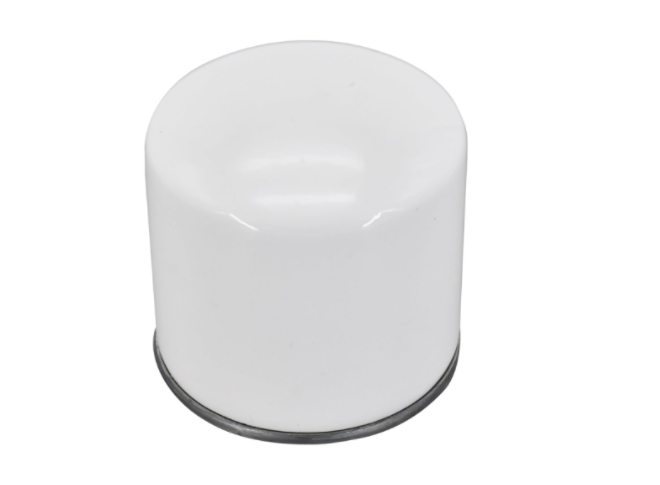

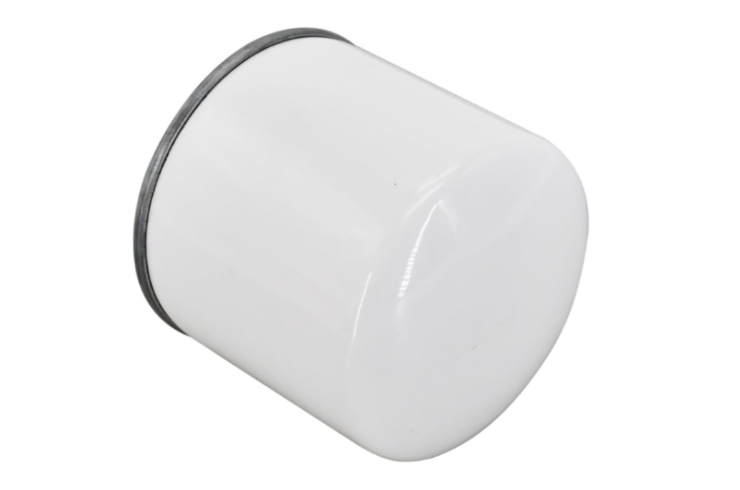

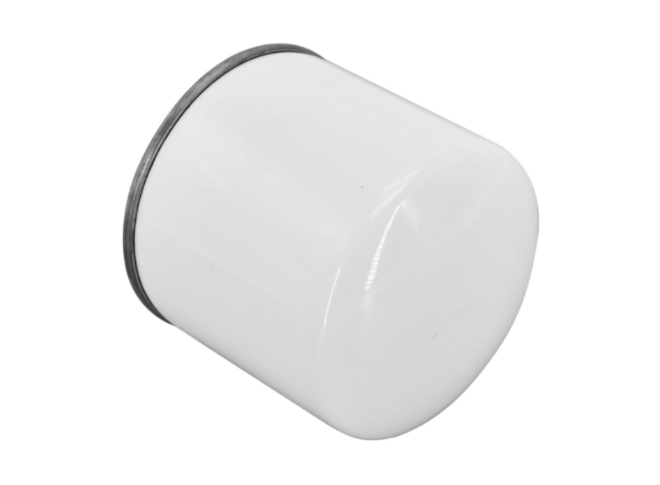

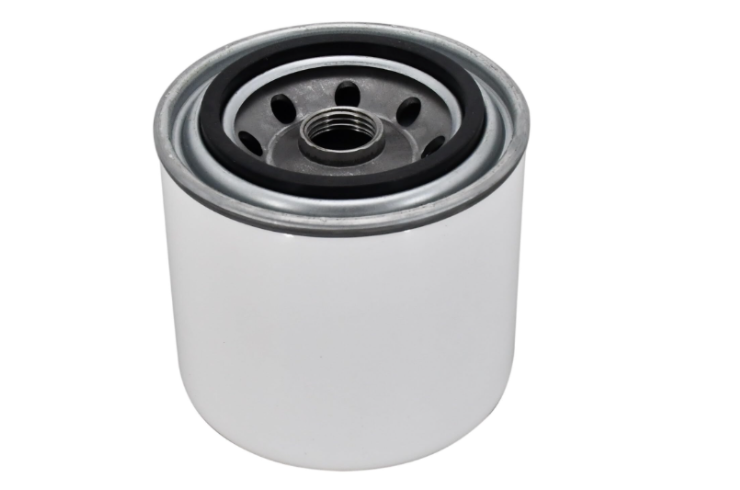

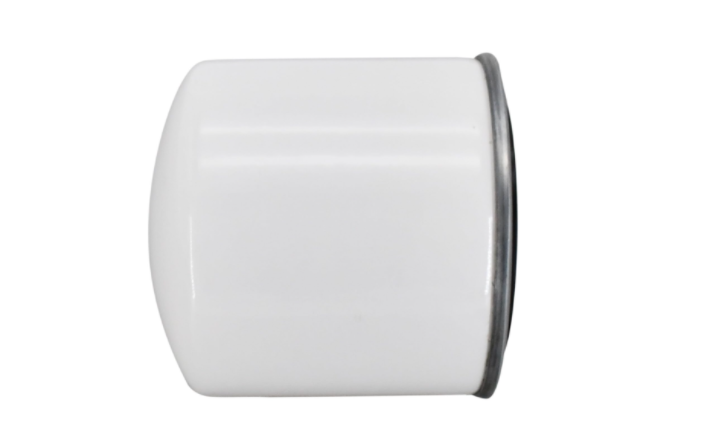

The LF3376 is a high-quality spin-on lubricating oil filter designed for marine, industrial, and diesel engine applications.

Type: Spin-on lube filter

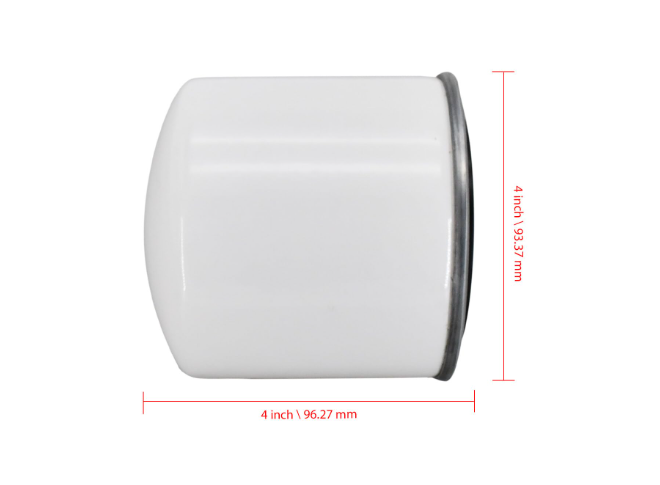

Dimensions: OD:94;H:107mm

Thread Size: 3/4-16 UNF-2B.

Send Email

Chat Now

Share With:

Introduction

Specifications

Application

Feature

Related Products

Introduction

Oil filter LF3376 Introduction

The LF3376 is a spin-on lubricating oil combination filter that provides full-flow and bypass oil filtration for heavy-duty engines. It is designed to remove carbon deposits and other harmful contaminants, thereby extending engine life and maintaining optimal performance in demanding applications.

Specifications

Oil filter LF3376 Specifications

Filter Type: Lube, Spin-On

Media Type: synthetic or Cellulose/Synthetic blend

Bypass Valve (BPV) Setting: 120 kPa (17.4 PSI)

Flow Rate (Permissible): 20 lpm (liters per minute), or 1.2 m³/h

Application

Oil filter LF3376 Application

Bobcat Loaders: Compatible with various loader models including the 643, 645, 743, 751, 753, 763, 773, S130, S150, S160, and S175. Case International Tractors: Used in the 33 Series and 633 tractor models. Kubota Tractors: Compatible with M-Series mid-size tractors, including models M105SHC, M6800, M6800DT, M8200, and M9000. New Holland Skid Steer Loaders: Applications include the L465, LX565, and LX665 models. JCB Equipment: Used in certain JCB machines, cross-referenced with part number 2630795.

740 (3)

740 (2)

740 (1)

Feature

Oil filter LF3376 Feature

Durable Construction:

Features robust internal components, heat-tolerant seals and O-rings, and strong outer screen cages for enhanced durability and reliable performance in demanding environments.

Bypass Valve:

Includes a bypass valve with a setting of 120 kPa (17.4 PSI) to ensure proper engine protection against oil starvation if the main filter media becomes clogged.

Ease of Use:

The spin-on design allows for quick, simple installation and maintenance, a key feature for commercial and heavy equipment use.
