Your position: Home > Oil Filter Element > Hydraulic Oil Filter > hydraulic oil filter HY-D501.10.10/H300W/ES

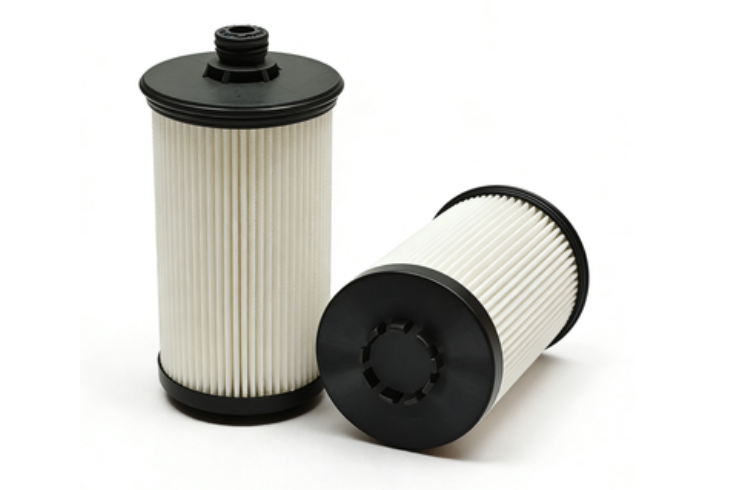

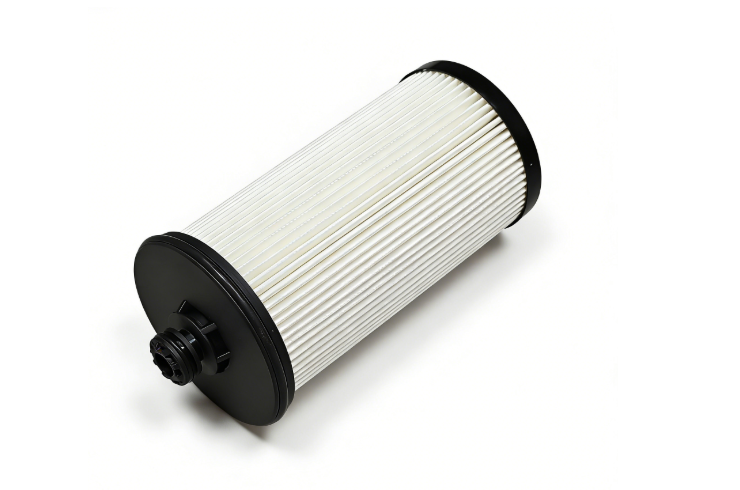

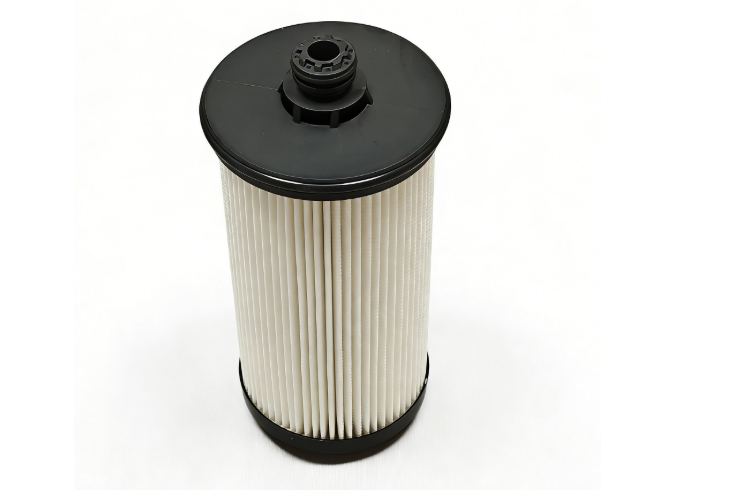

hydraulic oil filter HY-D501.10.10/H300W/ES

The HY-D501.10.10/H300W/ES is a high-performance hydraulic oil filter element designed to remove contaminants, such as metal particles and sludge, from hydraulic systems, protecting components like pumps and valves. It typically features a ~10-micron fiberglass or mesh filter media, offering high dirt-holding capacity, low pressure loss, and high flow rates, often used as a replacement for Plasser railway and industrial machinery.

Model: HY-D501.10.10/H300W/ES

Filtration Accuracy: Commonly available in 10-30 micron

Filter Material: High-efficiency Fiberglass

Structure: Reinforced, pleated, and designed for high flow

Send Email

Chat Now

Share With:

Introduction

Specifications

Application

Feature

Related Products

Introduction

hydraulic oil filter HY-D501.10.10/H300W/ES introduction

The HY-D501.10.10/H300W/ES is a high-performance, pleated hydraulic oil filter element commonly used in industrial machinery and railroad engineering (Plasser & Theurer) to remove solid contaminants and impurities. It typically features 10-micron fiberglass or metal mesh media for high dirt-holding capacity, low pressure drop, and superior durability under high-pressure conditions.

Specifications

hydraulic oil filter HY-D501.10.10/H300W/ES specifications

Part Number: HY-D501.10.10/H300W/ES

Filter Material: Fiberglass (ultra-fine glass fiber) for superior filtration efficiency.

Filtration Accuracy: Commonly available in 10-30 micron

Structure: Reinforced, pleated, and designed for high flow

Application: Suction or pressure side of hydraulic systems to remove impurities.

Application

hydraulic oil filter HY-D501.10.10/H300W/ES application

Engineering & Construction Machinery: Used in hydraulic circuits to protect pumps and valves from contaminants. Railway Maintenance: Utilized in specialized machinery, such as Plasser railway equipment, for hydraulic oil filtration. Industrial Hydraulic Systems: Applied in manufacturing plants, steel mills, and for industrial oil filtration stations. Power Generation: Used within power plant equipment.

740 2

740

740 3

Feature

hydraulic oil filter HY-D501.10.10/H300W/ES feature

High Filtration Accuracy:

Typically utilizes ultra-fine fiberglass, achieving up to 99.99% efficiency in trapping microscopic particles.

High Dirt Holding Capacity:

The pleated (corrugated) design increases the effective filtration area, ensuring a long service life (approximately 3500-5200 hours).

Robust Construction:

Features durable end caps and internal/external support nets, often made of stainless steel or treated electrolytic plates, which provide high pressure resistance and corrosion resistance.
