Your position: Home > Air Compressor > CF100EE CF100CE Compressed Air Filter

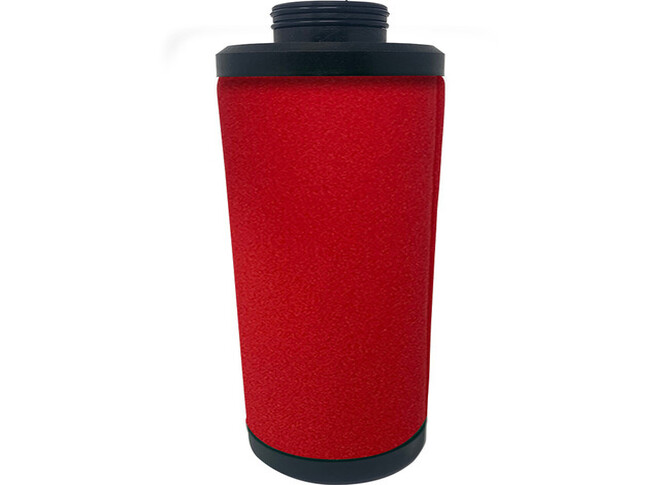

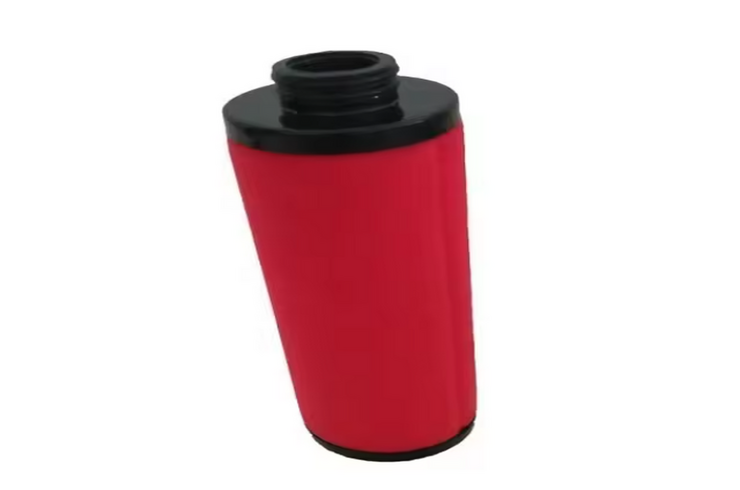

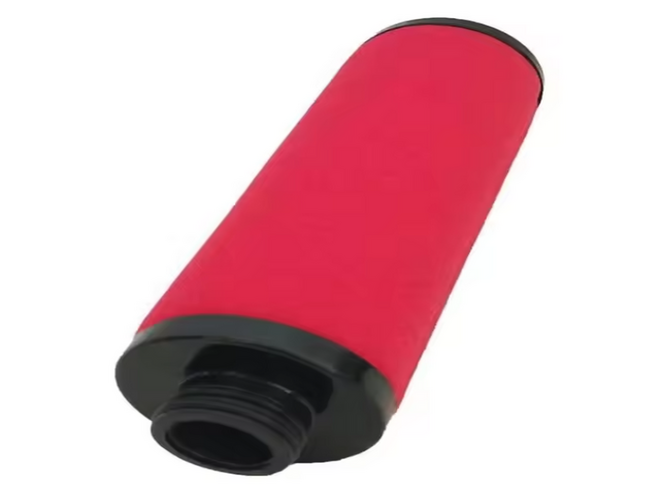

CF100EE CF100CE Compressed Air Filter

CF100EE filter has a high-efficiency filtration accuracy of 0.01 micron and removes oil to a maximum carryover of 0.008 ppm. In contrast, the CF100CE is a general-purpose filter with a 1-micron rating and a maximum oil carryover of 1 ppm.

Model: EKF9004DD-B

Type: Replacement element kit for fine coalescing filters

Micron rating: 0.01 micron (fine coalescing), with a 3.0 micron pre-filter

Function: Removes water, oil vapor, and other contaminants from compressed air

Connection size: For G1/4 to G1/2 port sizes

Send Email

Chat Now

Share With:

Introduction

Specifications

Application

Feature

Related Products

Introduction

CF100EE CF100CE Compressed Air Filter Introduction

Filter Element	Grade
CF100EE,CF100CE	A:-
	B:3 micron
	C:1 micron
	D:1 micron
	E:0.01 micron
	F:0.01 micron

Specifications

CF100EE CF100CE Compressed Air Filter Specifications

Part number:	CF100EE
Filtration Type:	High Efficiency Filtration (Coalescing)
Flow Rate:	100CFM
Micron Rating:	0.01Micron
Maximum Oil Carryover:	0.008 ppm

Application

CF100EE CF100CE Compressed Air Filter Application:

CF100EE filter is a high-efficiency coalescing filter element used in compressed air systems to remove contaminants like water, oil vapor, and other particulates. It is designed to provide clean compressed air while maintaining a minimum pressure loss. Its application is for maintaining the quality of compressed air streams in industrial and other commercial environments.
