Your position: Home > Air Compressor > Air compressor air filter C20500

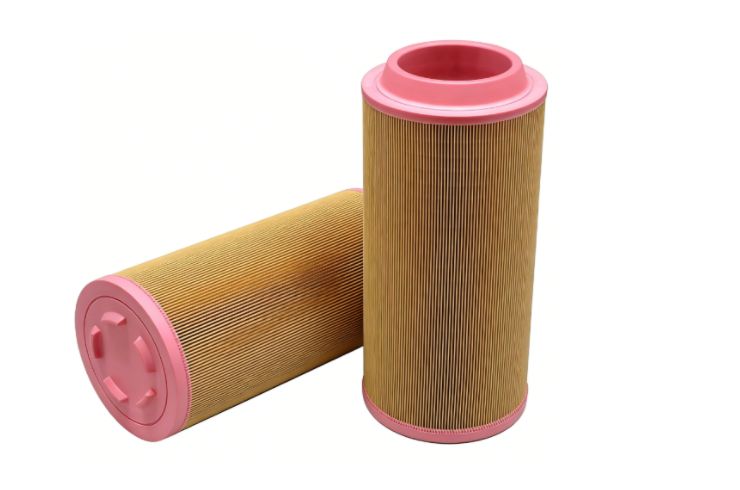

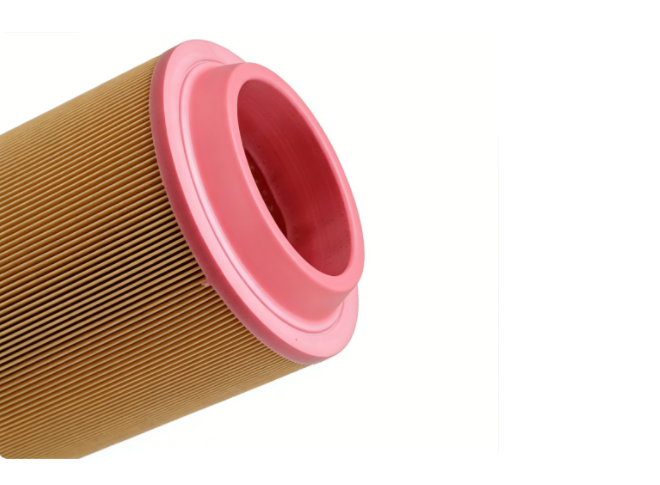

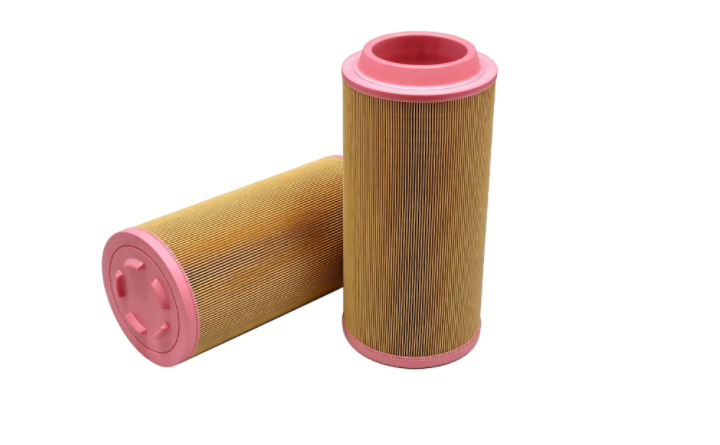

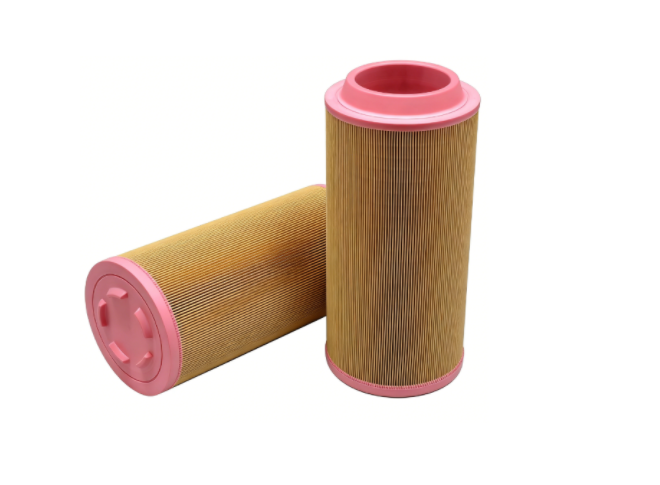

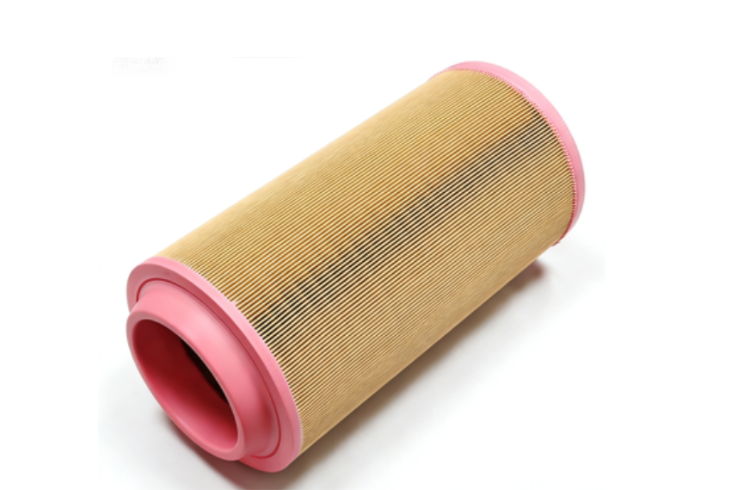

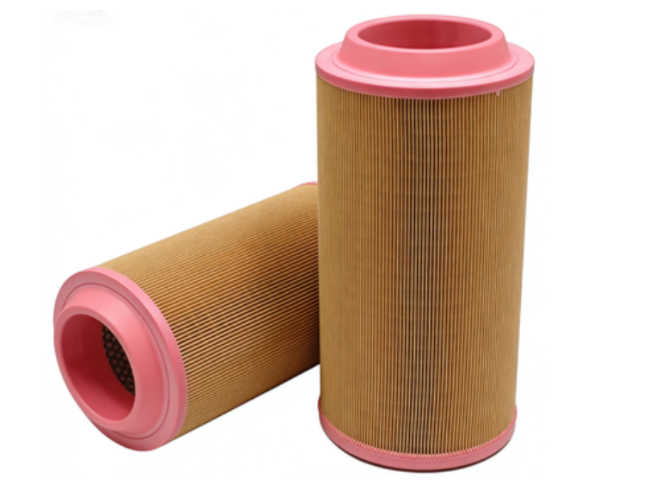

Air compressor air filter C20500

The C20500 air filter is a high-performance primary air cleaner designed for heavy-duty construction machinery, trucks, and industrial compressors. Measuring approximately 400mm in height and 195mm in diameter, it ensures clean air intake, protecting engines from dust, soot, and moisture.

Dimensions: 400*195*114mm

Type: Radial Seal Air Filter

Material: High-quality cellulose paper

Send Email

Chat Now

Share With:

Introduction

Specifications

Application

Feature

Related Products

Introduction

Air compressor air filter C20500 Introduction

The C20500 is a high-efficiency primary intake filter element designed to protect industrial screw air compressors by removing dust and particulate matter. It offers a filtration efficiency of 98% (5-10 microns range) to ensure optimal air purity and prevent component damage.

Specifications

Air compressor air filter C20500 Specifications

Filter Type: Air Filter / Filter Insert
Material: High-quality cellulose media
Application: Air compressor intake, industrial, and heavy-duty equipment
Replaces/Equivalent: Atlas Copco 1613740800, 6.2085.0, SA6665, AF25723161

Application

Air compressor air filter C20500 application

Air Compressors: Primarily used in screw compressors, notably compatible with Atlas Copco (e.g., 1613740800, GA37). Heavy Duty Construction & Mining: Suitable for equipment requiring high-grade intake filtration in dusty environments (drilling, sandblasting). Industrial Machinery: Used in stationary equipment like generators and HVAC systems. Agricultural Equipment: Protects engines in tractors and machinery.

740

740 3

740 2

Feature

Air compressor air filter C20500 feature

High Filtration Efficiency:

Capable of capturing over 98% of particulates down to 5–10 microns, including dust, soot, and oil aerosols.

Durable Construction:

Built with a sturdy, synthetic-reinforced frame and high-quality filter paper to maintain structural integrity under pressure, resisting collapse or warping.

Superior Airflow Management:

Engineered to maintain consistent pressure differentials for optimal, unrestricted airflow to the compressor or engine.

Extended Service Life:

Designed for long-lasting performance, with a service life often lasting up to 2000-2500 hours.
