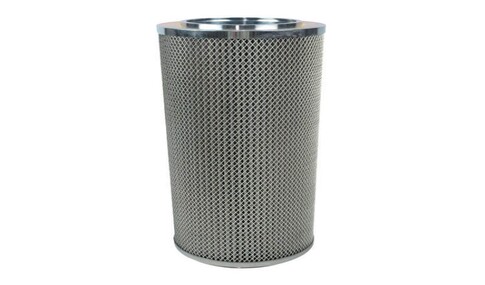

The large flow filter element uses a deep, fine polypropylene fiber membrane as the main filter layer. It features a large 6″ diameter, one-way opening and is specially designed to flow liquid from inside to outside, ensuring that all particles are intercepted inside the filter element. This ultra-large flow design reduces the use of multiple filter elements and filters in the same flow situation, greatly reducing equipment investment costs. Three processes and multiple precisions are available to meet different application requirements.
Product Specifications:
Outer Diameter: 6”
Length: 20”, 40”, 60”
Construction Material:
Filter Media: Polypropylene, Fiberglass
Support: Polypropylene
Frame: Polypropylene
Product Features:
Large filtration area, high throughput
Inside-out design
Handle design for quick replacement
Various precisions and lengths available
Applications:
General use: Pre-filtration for reverse osmosis systems
Industrial: Filtration of process water, condensate, cooling water, and wastewater
Chemical/Chemical Engineering: Filtration of various acids, alkalis, solvents, quench water, and brine
Power plant condensate filtration, etc.
